Mitsubishi AA090ME01 9.0 inch TFT Display

Product Categories

Mega Source Elec.Limited

Contact Now

Name: Mitsubishi AA090ME01 90 inch TFT Display
Brand: Mitsubishi
Price: 1 USD

Place of Origin : Japan

Brand Name : Mitsubishi

Certification : RoHS Compliant

Model Number : AA090ME01

MOQ : 1 Pcs

Price : Pls Contact sales team

Packaging Details : Standard Packaging

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union ,Escrow etc.

Supply Ability : 1000

Size : 9.0 inch

Resolution : 800(RGB)×480 , WVGA

Display Mode : IPS, Normally Black, Transmissive

Input Voltage : 3.3V (Typ.)

Contact Now

Mitsubishi AA090ME01 9.0 inch TFT Display

Specification for LCD AA090ME01
1,Mitsubishi AA090ME01--T1 Basic Information

2,Mitsubishi AA090ME01--T1 Mechanical Features

Panel Size :	9.0 inch
Dot Resolution :	800(RGB)×480 (WVGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	103 PPI
Aspect Ratio :	15:9 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.082×0.246 mm (H×V)
Pixel Pitch :	0.246×0.246 mm (H×V)
Weight :	410g (Typ.)
Surface :	Antiglare, Hard coating (3H)
Active Area :	196.8×118.08 mm (H×V)
Bezel Area :	199.4×120.7 mm (H×V)
Outline Dimension :	219×136.2 mm (H×V)
Outline Depth :	8.6/11.6 (Typ./Max.) mm
Holes & Brackets :	Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait :	Landscape type
Touch Panel :	Embeded (4-wire Resistive)

3,Mitsubishi AA090ME01--T1 Optical Features

Display Mode :	IPS, Normally Black, Transmissive
Brightness :	320 cd/m² (Typ.)
Contrast Ratio :	850 : 1 (Typ.) (Transmissive)
Display Color :	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut :	72% NTSC (CIE1931)
Response Time :	12/12 (Typ.)(Tr/Td)
Viewing Angle :	85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
White color Chromaticity :	Wx:0.318; Wy:0.335
White Variation :	1.30 (Max.)(5 points)

4,Mitsubishi AA090ME01--T1 Electronics Feature

5,Mitsubishi AA090ME01--T1 Backlight System

6,Mitsubishi AA090ME01--T1 Signal Interface

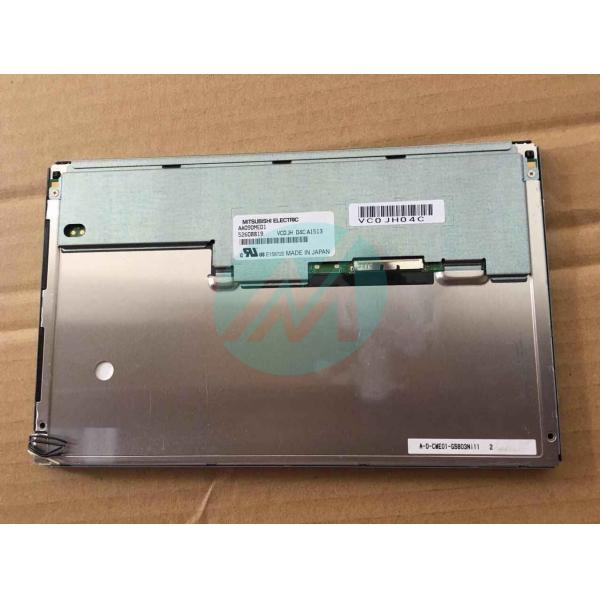

Detail picture for Mitsubishi AA090ME01 9.0 inch TFT Display
